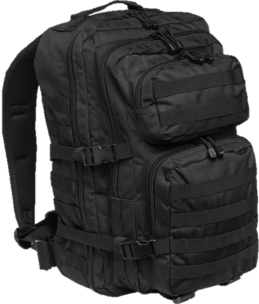

Portable GNSS repeater.
Use cases include MISSION CRITICAL and other PUBLIC SAFETY related services - whether it is location or timing related applications.
Everything you need for indoor GNSS in one compact case. Open the lid and setup the antenna and you are ready to go.
No need for fixed power connection when using battery.

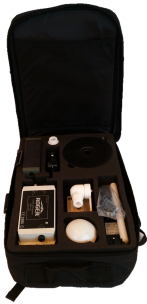

Includes:
1. GNSS-L1G1GA repeater
2. 230V Power supply for charging the battery pack and powering up the repeater
3. Battery pack (8 Ah) if no power is available
4. Antenna mount for the antenna
5. GNSS antenna and 20m or 40m cable on reel
6. Reel holder for winding/unwinding of cable
7. Fuse for over current protection
8. 12V Power supply for AC/DC input and car battery/cigarette lighter adapter
Weight:
6,9 kg
Size:
46.23 x 34.04 x 17.02cm (18.20” x 13.40” x 6.70”)
GNSS-L1G1GA Repeater
.
Frequency:
GPS L1 (1.57542 GHz), GLONASS G1 (1.602 GHz), GALILEO E1 (1,57542 GHz)
Overall Gain:
>40 dB
Noise Figure:
<2 dB
Adjustable attenuation:
0-40 dB
Impedance:
50Ω
Input connector:
TNC-female
Operating temperature:
-40 - +75 °C
Power supply:
110-230VAC - 12VDC/1.0A
Battery pack:
Tracer BP2545 Lithium Polymer Battery Pack Battery Model Spec: LiPo -6067100 3S2P 11.1V 8Ah
Antenna power output:
+5VDC, 100mA
TX antenna gain max:
+4dBd, RHCP polarization
