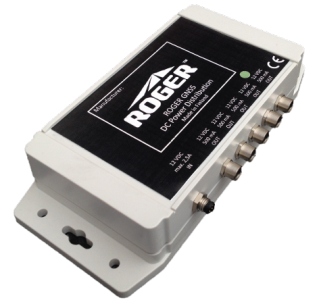

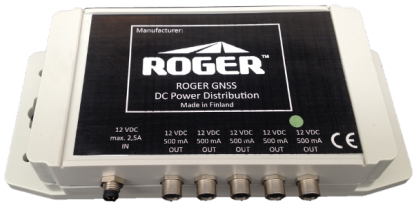

GNSS-DCPD5-IP67, Power Distribution unit (5 outputs)

Flexible power for a wide range of GNSS applications.

Roger™ GNSS DC Power Distribution is designed to be used with Roger GNSS
repeaters. Roger™ GNSS DC Power Distribution can provide power up to 5 Roger
GNSS repeaters from one AC power outlet.

Applications:
• IP67 DC power supply for harsh conditions
• Aircraft hangars, parking areas etc.
• Installations with multiple repeaters

Main Features:
• Power cables available in 5, 10, 20 and 50 meters
• Power indicator
• Dry contact for supervising the status of the power supply
• 5 x 12 VDC 500 mA output

Tekniset tiedot

Size:

200*119*39mm

Weight:

220 g

Operating temperature:

-40 - +75°C

Casing:

IP67

Connectors:

5 x female M8 and 1 x male M8

Input:

12 VDC max 2.5 A

Output:

5 x 12 VDC 500 mA
